ASUS
TUF Gaming 750G
AUTHOR:Onie T.
TESTED BY:Lucas N.
Published:

The ASUS TUF Gaming 750G is a 750W ATX 3.0 power supply featuring a single fan mode and a modular design for customizable cable management. Priced at $120 USD from the ASUS US webstore, it delivers stable and reliable performance suitable for high-performance systems. We recommend this PSU for its good load regulation, and resilience to brownouts.

WHAT YOU NEED TO KNOW

THE GOOD

  • Resiliency

    It is very resilient to brownouts, making it an excellent choice if power reliability is a concern.

THE BAD

  • Cables

    Not necessarily 'bad', but the cables are unbound, which can make them difficult to organize and prone to tangling. However, the PSU does come with velcro cable ties, and the cables are very flexible.

THE REST

  • Overall

    The 750G is unremarkable, but this is not necessarily a downside with a power supply. It performed well but not exceptionally in most areas. We recommend this PSU for its good load regulation, and resilience to brownouts.

LINKS
Where to buy*
NeweggAmazon

*This website uses affiliate links. Purchases made through these links may provide compensation to Linus Media Group.

Hardware
HardwareNotes

The ASUS TUF Gaming 750G comes with standard necessary accessories, though nothing extra. The included cables are very flexible, as they are not bound in any way, which can make organization challenging, though velcro cable ties and zip ties are provided. These cables are not sleeved but are of excellent quality, regularly insulated, and have a braided pattern.

The PSU features a 135mm dual ball bearing fan and sufficient connections to power the CPU, a 12VHPWR connector, another PCIe device, and numerous SATA devices. It has an 80PLUS Gold rating, with power ratings and specifications meeting expectations for this price point. ASUS specifies an operating temperature of 0°C to 50°C, though we cannot verify this through testing.

In the Box

1 of 4

Front of the box.

Construction

1 of 2

Power input side of the PSU.

Case Format
Cable Form
Colour
Colour Theme
Case Width
Case Height
Case Length
Case Effective Length
Mass
Fan & Cooling

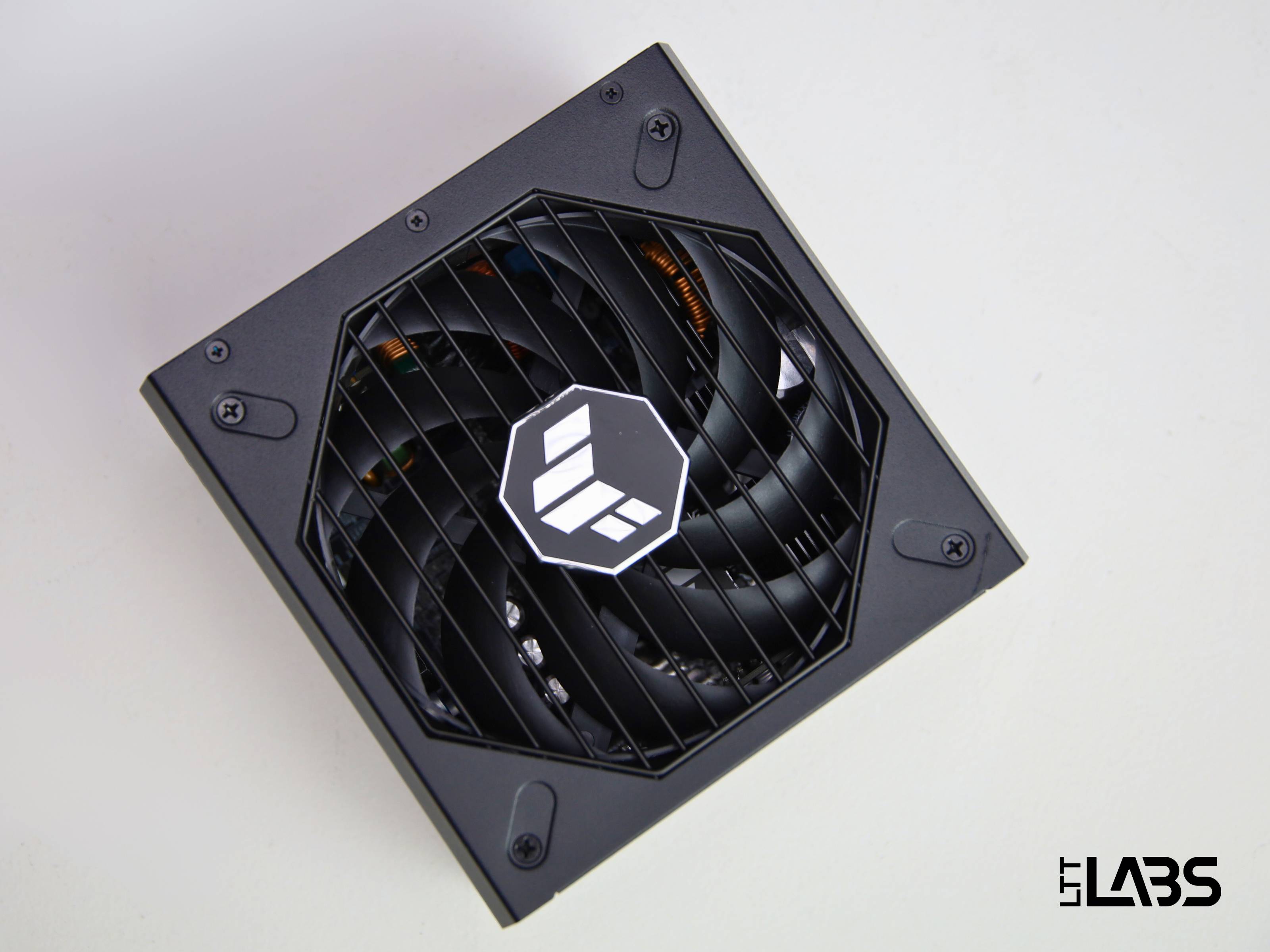

Top of the PSU displaying the fan.

Top of the PSU displaying the fan.

Cooling Method
Fan Diameter
Specifications

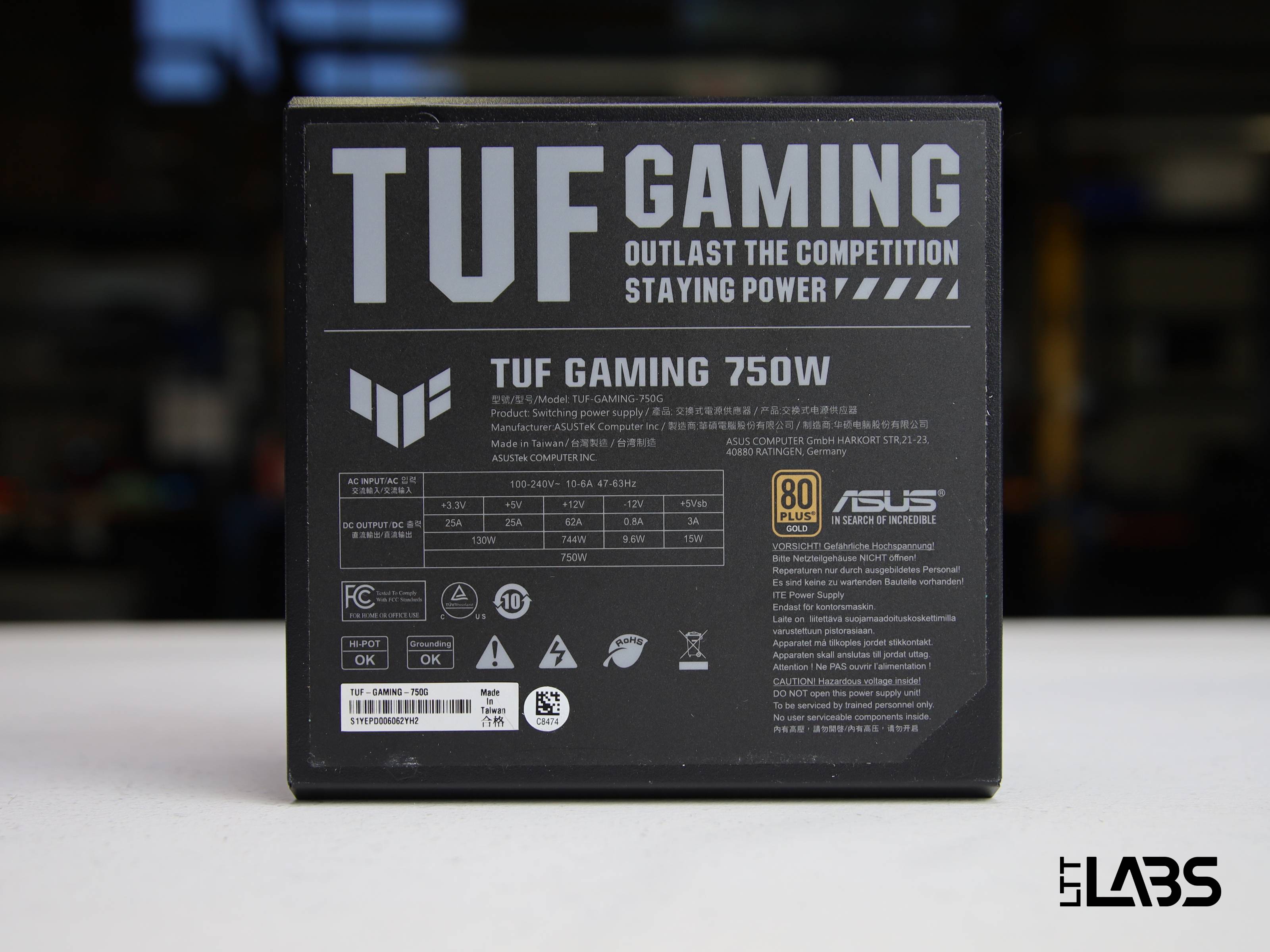

Bottom of the PSU displaying the specifications.

Bottom of the PSU displaying the specifications.

ATX Version
80PLUS Rating
Cybenetics ETA
Cybenetics Lambda
Input Frequency Range
Input Voltage Range
Operating Temperature Range
Storage Temperature Range
Cables
1xMotherboard
24-pin Motherboard:
2xCPU / PCIe
4+4-pin CPU:
1x12VHPWR / 12V-2x6
12VHPWR (600W):
1x12VHPWR / 12V-2x6
6+2-pin PCIe:
6+2-pin PCIe:
1xPeripheral / SATA
SATA (Right Angle):
SATA (Right Angle):
1xPeripheral / SATA
SATA (Right Angle):
SATA (Right Angle):
SATA (Right Angle):
1xPeripheral / SATA
Molex:
Molex:
Molex:
Molex:
Power Ratings
+12 V+5 V+3.3 V+5 Vsb-12 V
CURRENT62 A25 A25 A3 A0.8 A
WATTAGE744 W130 W15 W9.6 W
750 W

Please note that the above ratings are manufacturer advertised specifications.

Features & Software
Features & SoftwareNotes

The TUF Gaming 750G operates in a single fan mode and the fan does not spin up until required at higher loads or temperatures. It includes all of the standard protections, with particularly high OCP and OPP results, especially for OPP and the 12V OCP. The PSU comes with a 10-year warranty, which is standard for its class.

Modes
Protections
Over Current Protection (OCP)
Over Power Protection (OPP)
Short Circuit Protection (SCP)
Over Temperature Protection (OTP)
Over Voltage Protection (OVP)
Under Voltage Protection (UVP)
Performance
PerformanceNotes

The TUF Gaming 750G performed as expected across all tests. Throughout its full rated output power range of 750W, there was a 0.164V voltage drop on the 12V rail, which is within ATX specifications. The voltage ripple is about average for the 12V rail, but the 5V and 3.3V ripples are quite low, though these rails are less critical. The PSU has very good voltage regulation and performed well against power excursions, surviving all tests and maintaining voltages within regulations for almost all excursions. It slightly missed the mark on the 12V rail for very quick excursions but otherwise showed good performance.

Voltage Ripple
Load Regulation
Power Excursion

1 of 6

Productivity & Efficiency
Productivity & EfficiencyNotes

Rated at 80PLUS Gold, the TUF Gaming 750G achieved 91% efficiency at 50% of its maximum rated load. It demonstrated significant resilience to brownouts, with the Power Good line dropping at an 18 ms dropout and voltage taking even longer to begin dropping. The Over Power Protection engaged at a maximum of 165% of the rated load, while the 12V rail managed 103A, or 166% of its rating. This is higher than similarly rated power supplies, allowing for more onerous loads without shutting down, though this PSU might take slightly longer to shut down in the event of a fault.

Efficiency

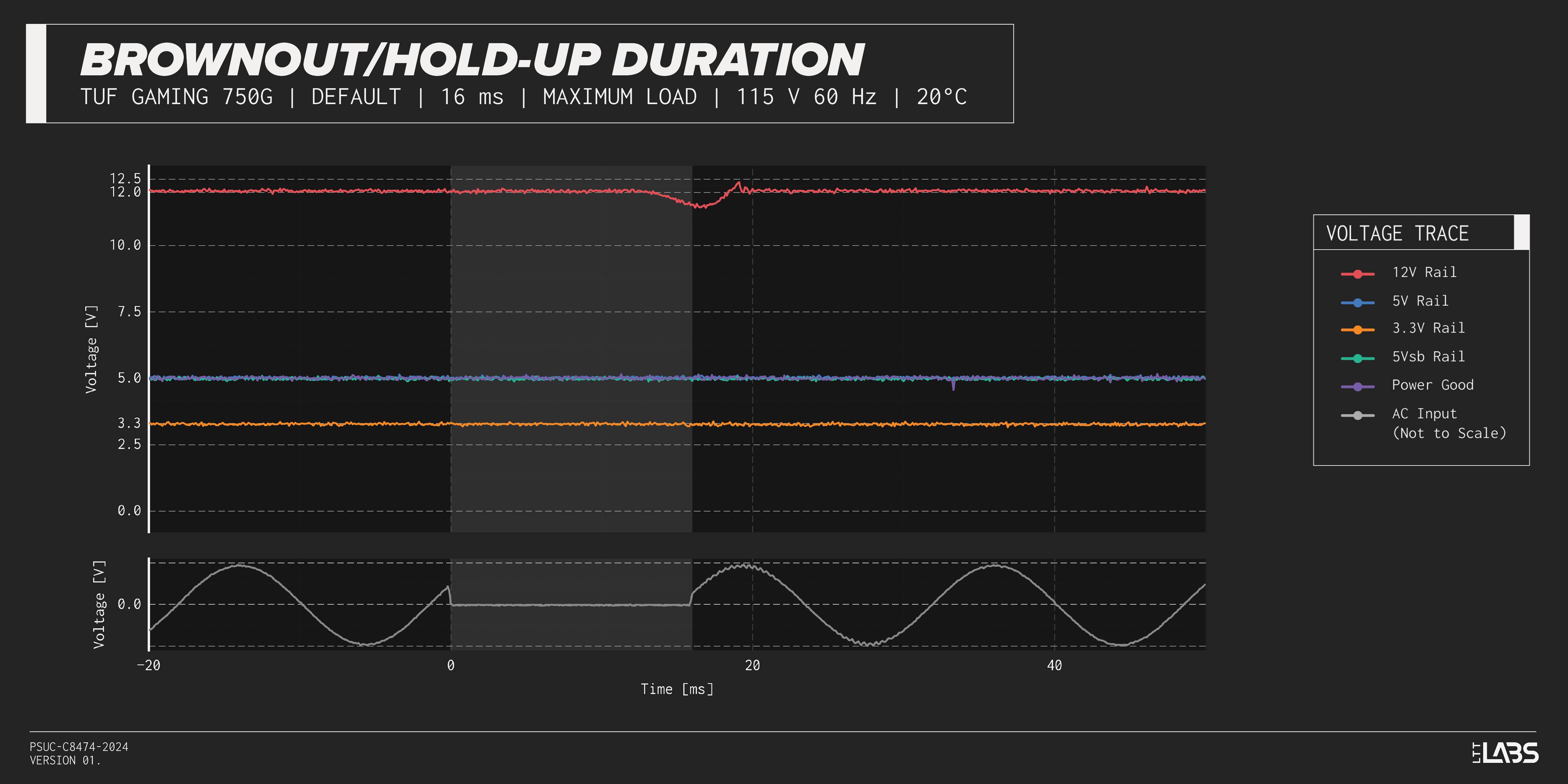

Brownout
Brownout/Hold-Up Duration 115 V 60 Hz 20°C
Over Current Protection (OCP)
Test Configuration
Video Overview
Test Bench
AC Source
Automated Test Software
DC Load Mainframe
Dual Channel Loads
Chroma 63610-80-20
Environmental Chamber
Microphone
Multimeter
ON/OFF Controller
Chroma 80613
Power Meter
SC/OVP Tester
Chroma 80612
Thermocouple Scanner
Noise Analyzer
Single Channel Loads
Chroma 63640-80-80
