Seasonic
Focus GX-750
AUTHOR:Onie T.
TESTED BY:Lucas N.
Published:

The Seasonic Focus GX-750 ATX 3.0 is a 750W, fully modular ATX 3.0 power supply with a hybrid fan mode, launched with a MSRP of $159.99 USD. We recommend the Focus GX-750 because of its good voltage regulation, included accessories, and consistent protections.

Its modular design offers customizable cable management, ensuring a neat and clutter-free build. With 750W of power, it is suitable for high-performance systems, delivering stable and reliable performance

WHAT YOU NEED TO KNOW

THE GOOD

  • Price

    Although launched with a MSRP of $159.99 USD, as of publication data it is priced at $89.99 USD across various online retailers.

  • Accessories

    It comes with all the standard accessories and additional high-quality accessories such as a PSU and cable bag, and a handy PSU tester.

THE BAD

  • Nothing at the time of writing

THE REST

  • Overall

    We recommend the Focus GX-750 for its good voltage regulation, and consistent protections.

  • Performance

    While it performed well across all tests, it did have a few marginal failures and marginal passes that either comply within specifications or are unlikely to cause any issues.

LINKS
Where to buy*
NeweggAmazon

*This website uses affiliate links. Purchases made through these links may provide compensation to Linus Media Group.

Hardware
HardwareNotes

The Seasonic Focus GX-750 is equipped with a 135 mm Fluid Dynamic Bearing fan designed for quiet operation. It offers connections for the CPU, a 12VHPWR connector, additional PCIe devices, and multiple SATA devices.

In the Box, it includes standard items along with a PSU and cable bag, and velcro cable ties. The included PSU tester, provides a more user-friendly alternative to the basic connector with wires occasionally supplied by other manufacturers. The unit includes an ample supply of cables that, although not sleeved, are of solid quality, regularly insulated, and feature a braided pattern. The included power supply installation booklet provides very helpful graphics on how to install the power supply depending on the case.

The power ratings and specifications align with expectations for this price range. On the Seasonic specifications webpage it specifies that the Operating Temperature is 0°C to 50°C, though we cannot verify this through testing.

In the Box

1 of 4

Front of the box.

Construction

1 of 2

Power input side of the PSU.

Case Format
Cable Form
Colour
Colour Theme
Case Width
Case Height
Case Length
Case Effective Length
Mass
Fan & Cooling

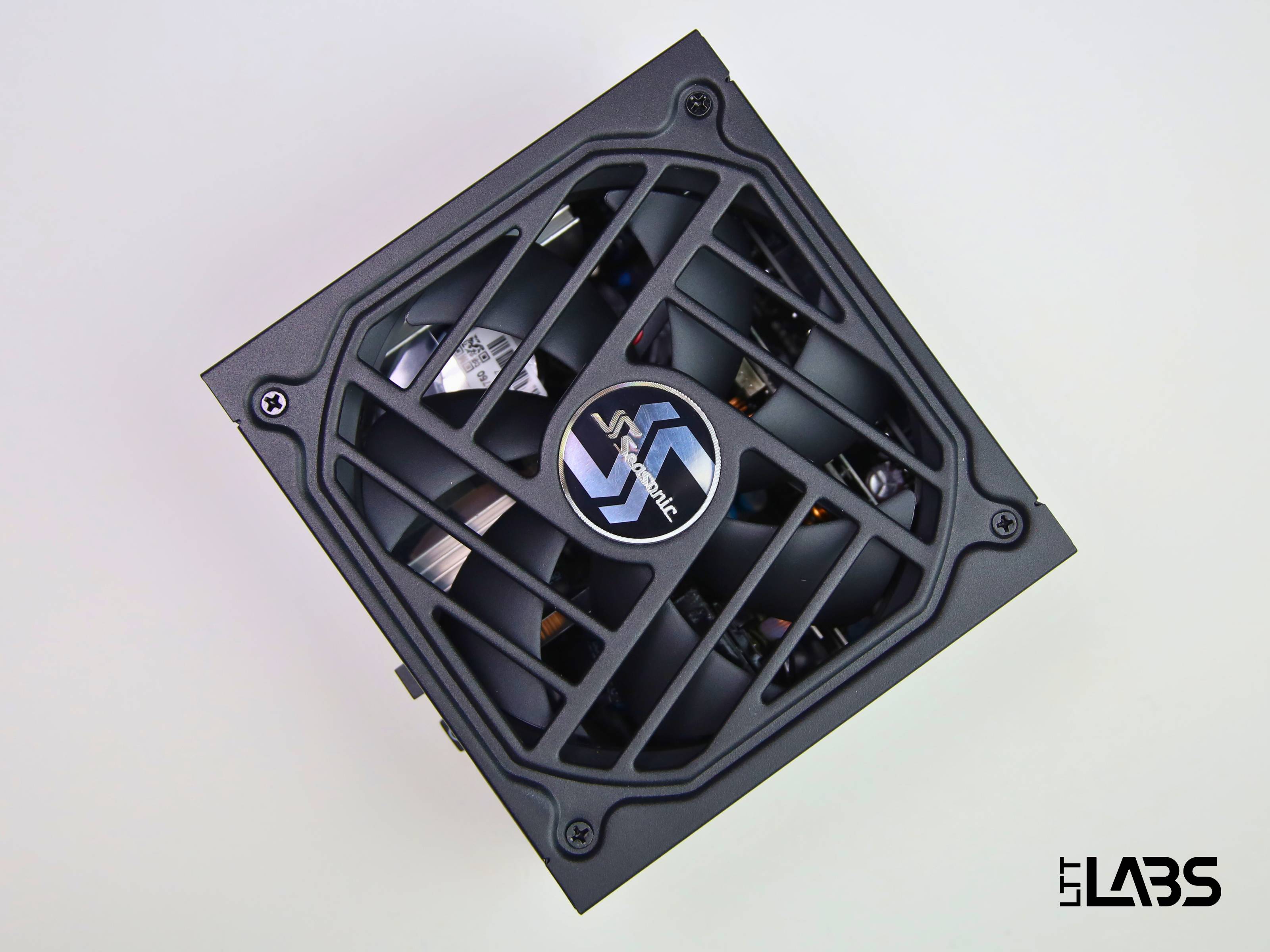

Top of the PSU displaying the fan.

Top of the PSU displaying the fan.

Cooling Method
Fan Diameter
Specifications

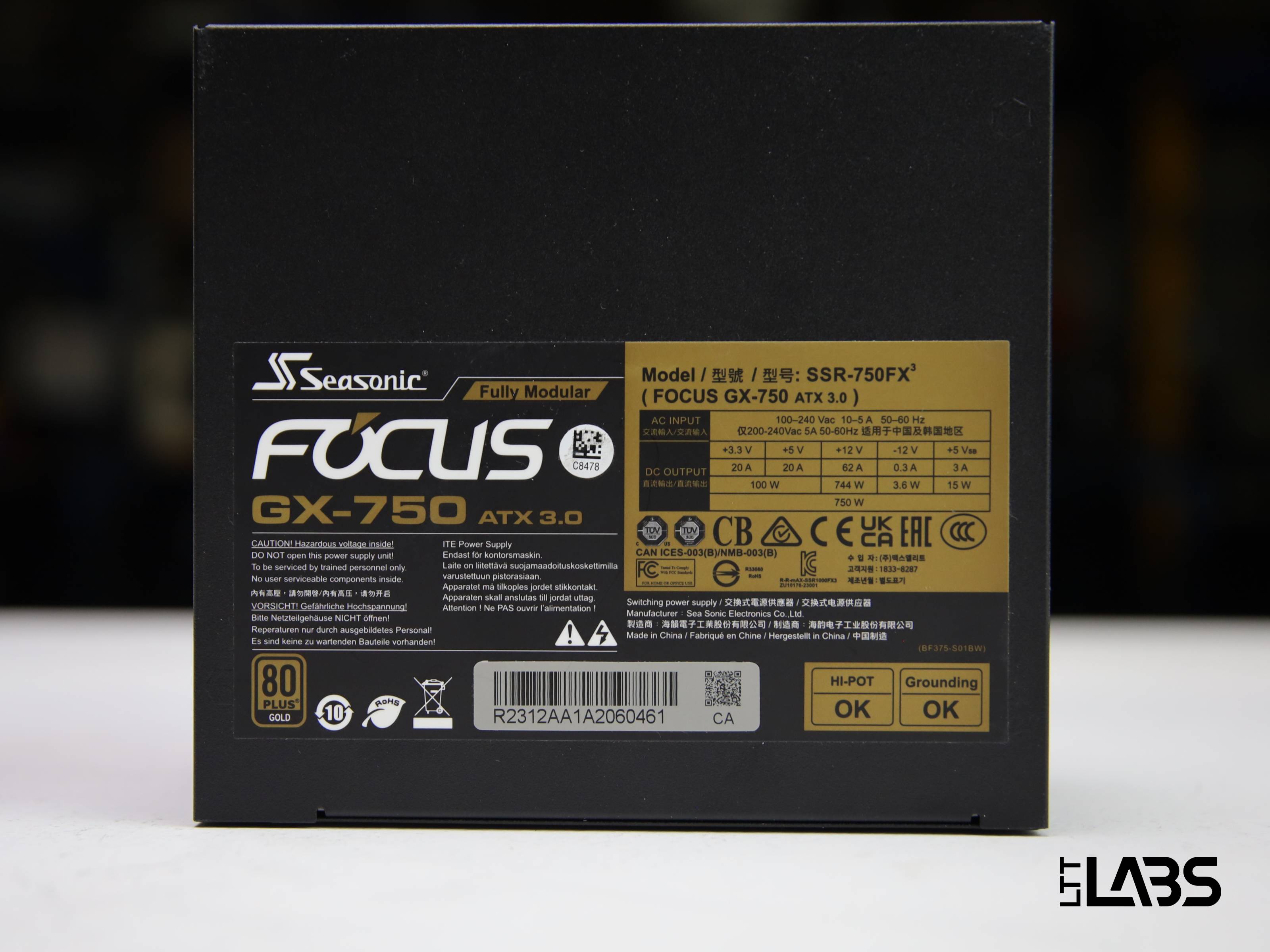

Bottom of the PSU displaying the specifications.

Bottom of the PSU displaying the specifications.

ATX Version
80PLUS Rating
Cybenetics ETA
Cybenetics Lambda
Input Frequency Range
Input Voltage Range
Operating Temperature Range
Storage Temperature Range
Cables
1xMotherboard
24-pin Motherboard:
2xCPU / PCIe
4+4-pin CPU:
2xCPU / PCIe
6+2-pin PCIe:
1x12VHPWR / 12V-2x6
12VHPWR (600W):
1xPeripheral / SATA
SATA (Right Angle):
SATA (Right Angle):
1xPeripheral / SATA
Molex:
Molex:
Molex:
2xPeripheral / SATA
SATA:
SATA:
SATA:
SATA:
Power Ratings
+12 V+5 V+3.3 V+5 Vsb-12 V
CURRENT62 A20 A20 A3 A0.3 A
WATTAGE744 W100 W15 W3.6 W
750 W

Please note that the above ratings are manufacturer advertised specifications.

Features & Software
Features & SoftwareNotes

The Focus GX-750 features a hybrid fan mode that is digitally controlled and will not run until needed. This mode, Seasonic’s Digital Hybrid Fan Control, can be selected with a physical switch on the rear of the power supply.

The GX-750 is equipped with all standard protections, and a 10-year warranty as expected.

Modes
Protections
Over Current Protection (OCP)
Over Power Protection (OPP)
Short Circuit Protection (SCP)
Over Temperature Protection (OTP)
Over Voltage Protection (OVP)
Under Voltage Protection (UVP)
Performance
PerformanceNotes

The Focus GX-750 showed competent performance in tests. Throughout its full rated output power range of 750W, there was only a 0.109V voltage drop on the 12 rail, which is within ATX specifications.

The PSU meets ATX ripple specifications, with the peak-to-peak signal ripple of the fully loaded 12V rail measuring 35mV. The 5V and 3.3V rails also had a signal ripple of 35mV each. The 5Vsb rail was close to the limit of specifications, but it is a low-power output rail not used for powering critical components.

The Focus GX-750 handled power excursions adequately, with some marginal failures on the 12V rail that are unlikely to cause significant issues.

Voltage Ripple
Load Regulation
Power Excursion

1 of 6

Productivity & Efficiency
Productivity & EfficiencyNotes

The Focus GX-750 is rated at 80PLUS Gold, achieving 91% efficiency at 50% of its maximum rated load. This is adequate, though not outstanding, at lower wattages. It performed sufficiently in brownout tests, withstanding a 12ms dropout at full rated load for both 115V and 230V inputs. Notably, this power supply will automatically resume output when the input power recovers in most cases.

The Over Power Protection activated at a maximum of 145% of the rated load, while the 12V rail alone is capable of 88A, or 141% of its rating. This provides reasonable protection against component faults and allows for minor power draw exceedances beyond the official rating.

Efficiency

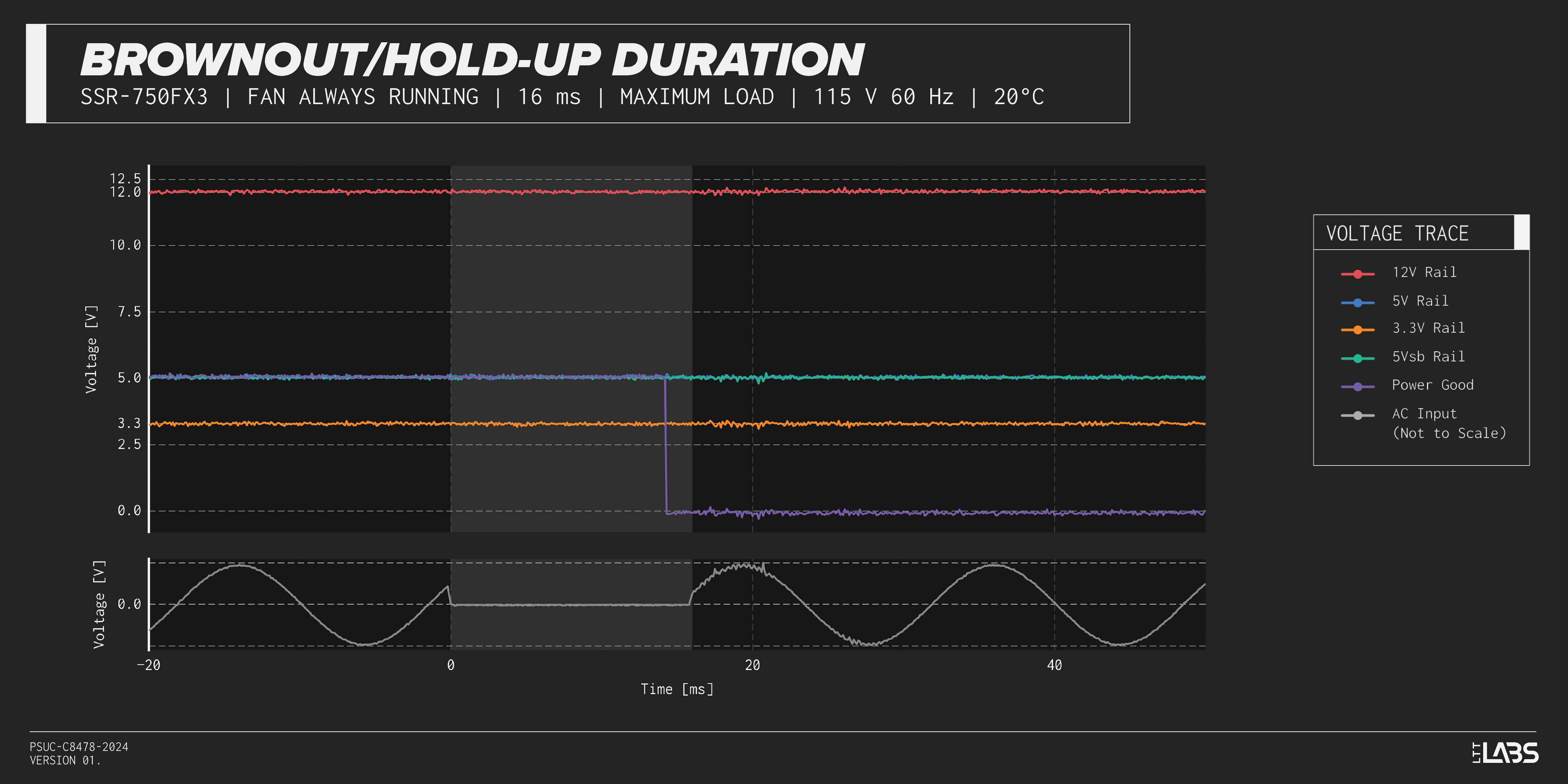

Brownout
Brownout/Hold-Up Duration 115 V 60 Hz 20°C
Over Current Protection (OCP)
Test Configuration
Video Overview
Test Bench
AC Source
Automated Test Software
DC Load Mainframe
Dual Channel Loads
Chroma 63610-80-20
Environmental Chamber
Microphone
Multimeter
ON/OFF Controller
Chroma 80613
Power Meter
SC/OVP Tester
Chroma 80612
Thermocouple Scanner
Noise Analyzer
Single Channel Loads
Chroma 63640-80-80
